What is the main advantage of Variable Geometry Tables (TGV) compared to standard worktables?

Bacci’s patented TGV tables can be automatically positioned outside the working area or tilted to perfectly fit the workpiece shape. This allows optimal clamping of curved or complex parts (such as chair components), reducing manual setup times and the need for dedicated jigs to zero.

How does the Master TGV handle changeovers between different jobs to eliminate downtime?

MASTER TGV

UNMATCHED VERSATILITY: 360-DEGREE PRODUCTION

Extensive customization of axis travels and numerous available clamping systems: Master Tgv represents the ideal solution for processing pieces of any size, shape, or material.

Specifiche uniche della MASTER TGV: Tavoli a geometria variabile con bloccaggio ottimale e produttività massimizzata

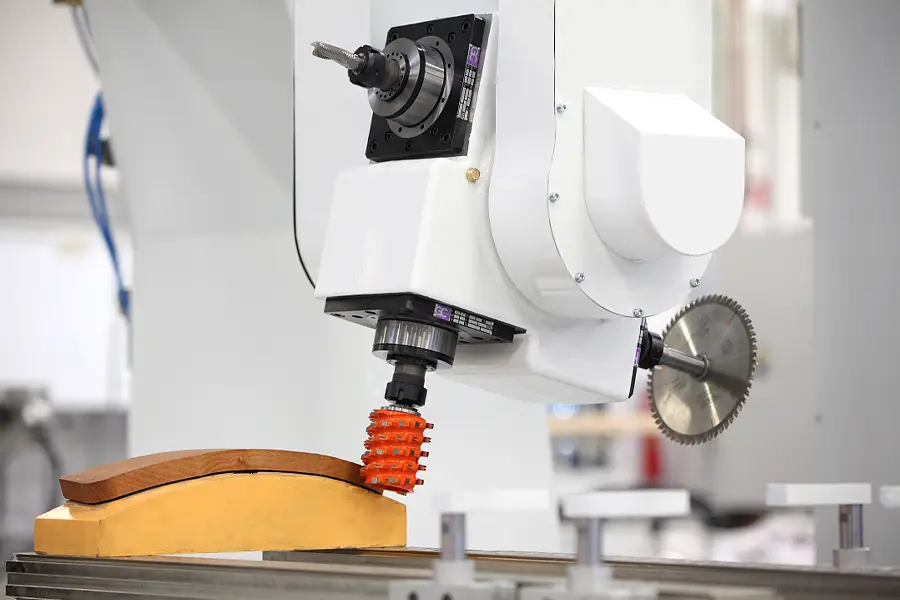

OPERATING HEADS FOR EVERY TYPE OF PROCESSING

Bring all your tools on board! And when they’re not enough, equip the operating head with an automatic tool changer spindle.

ONE OF THE WIDEST Z STROKE IN SOLID WOOD

With Z-axis stroke options ranging from a minimum of 750mm to a maximum of 1500mm, you no longer have to worry about insufficient clearance for the workpiece.

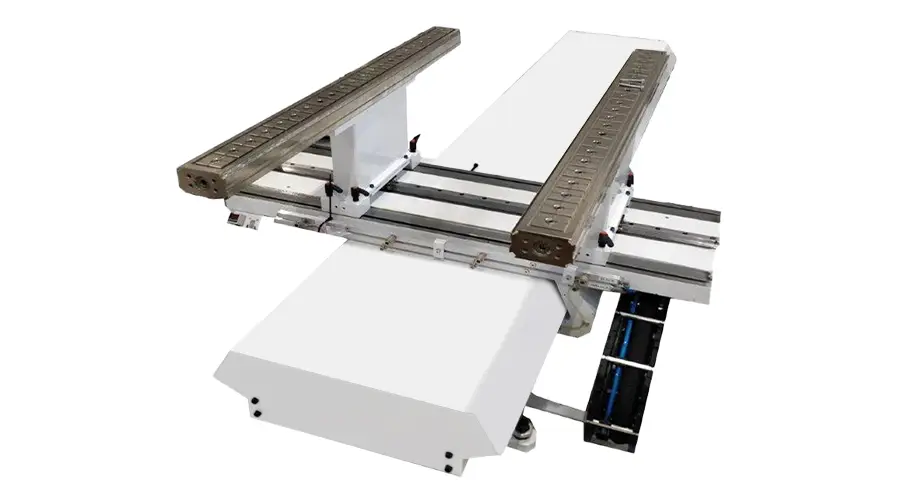

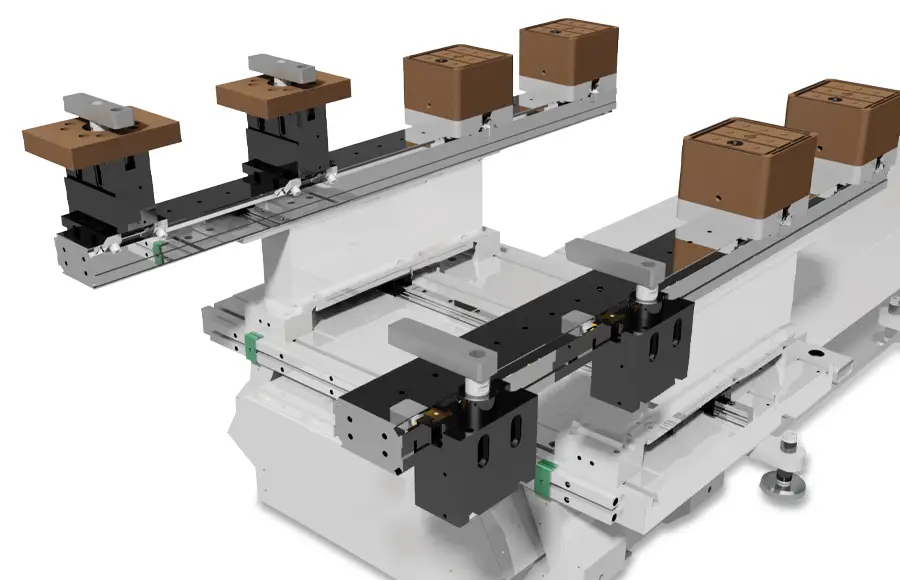

WORKING TABLES (TGV) WITH VARIABLE GEOMETRY. (PATENTED)

Simplify and speed up working table setup operations with two adjustable rails in a single direction and sliding locking systems on them positioned for optimal operation. Steel rails with threaded holes for secure and repeatable fixture anchoring.

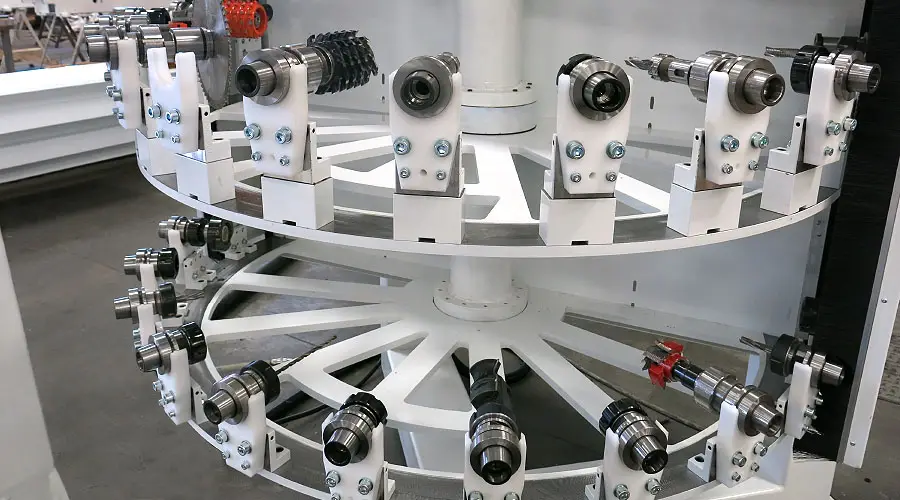

ALL TOOLS ALWAYS AVAILABLE

Bacci’s multi-level tool magazines (up to 48 positions across 3 levels) maximize tool library accessibility, ensuring all tools are always available immediately.

Y-AXIS PROTECTION

All BACCI machining centers are designed to prevent shavings and waste from getting stuck between the opposing movements of the two working tables, as they slide on separate and well-spaced bases. Additionally, waste cannot encroach on the space reserved for guides and screws, thanks to protective plates installed for their safeguarding.
