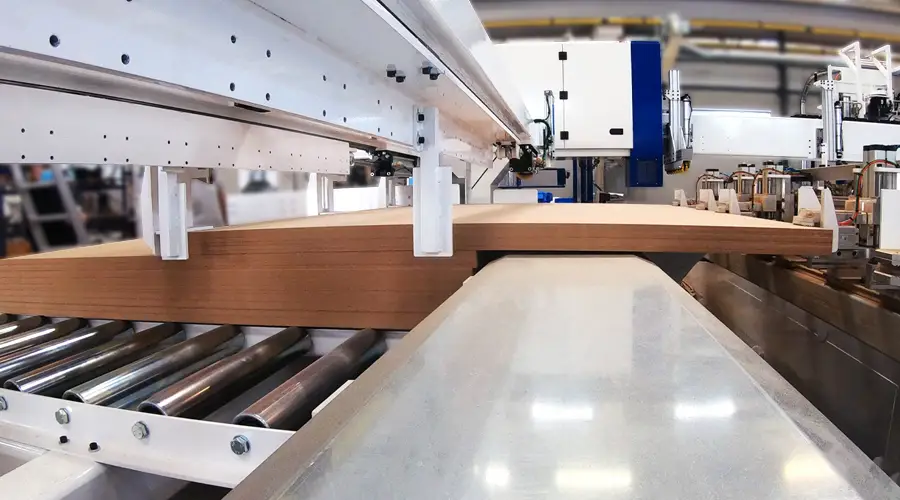

The ATLANTIS numerically controlled cutting center is equipped with 3 interpolated axes (X, Y, C) to create curved cuts on pieces of any size.

As precise and versatile as a CNC machine.

As productive as a line machine.

As simple to use as a traditional machine.



Technical data:

C axis blade rotation

± 90°

Cutting length

0 ÷ 1,500/2,500 mm

Loading depth

1,350/1,500mm

Cutting depth

750 mm

Cutting height

0 ÷ 150 mm

Minimum cutting radius

50 mm*

Feeding speed

0 ÷ 25 m/min

* based on the blade equipped
